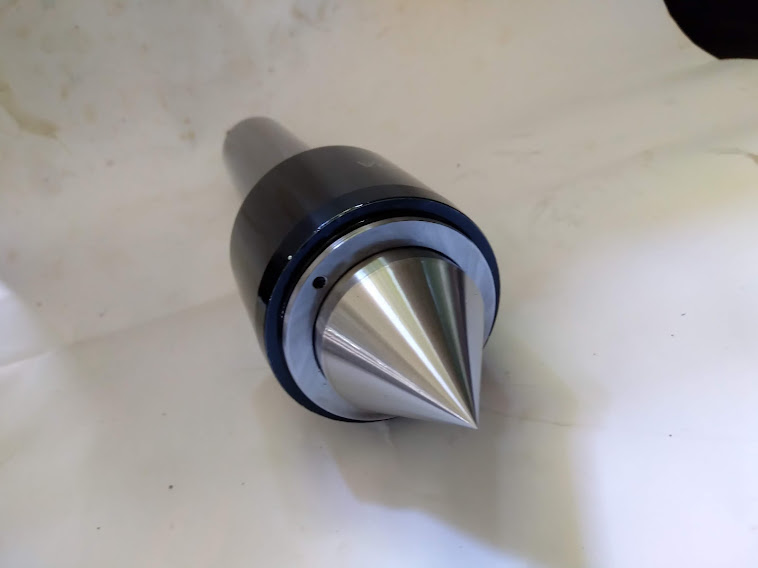

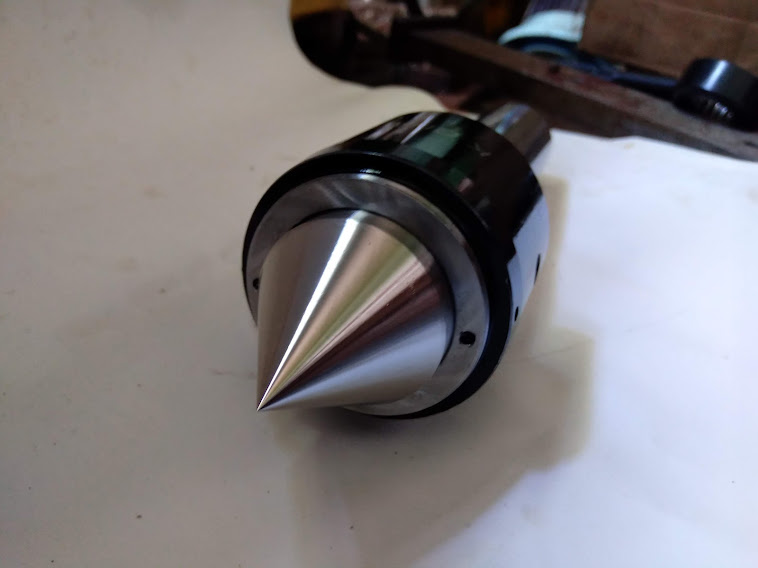

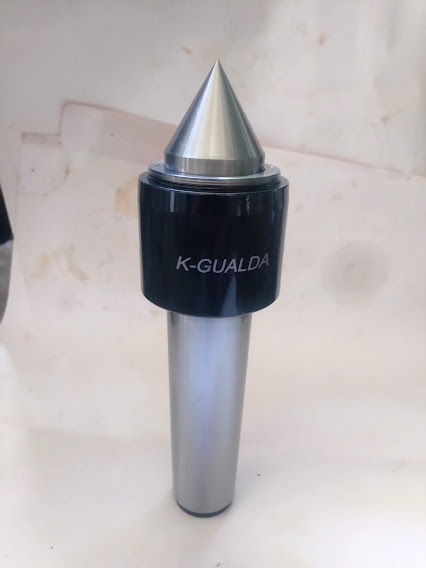

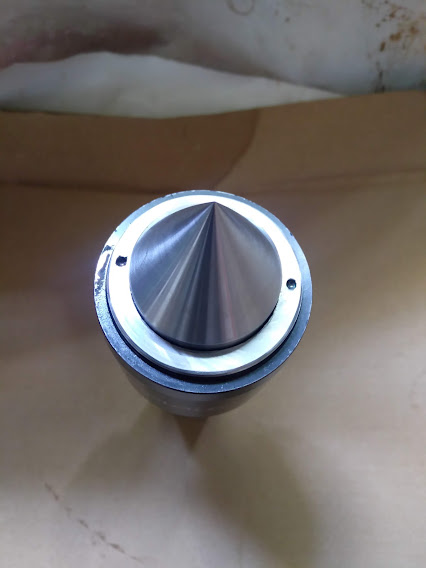

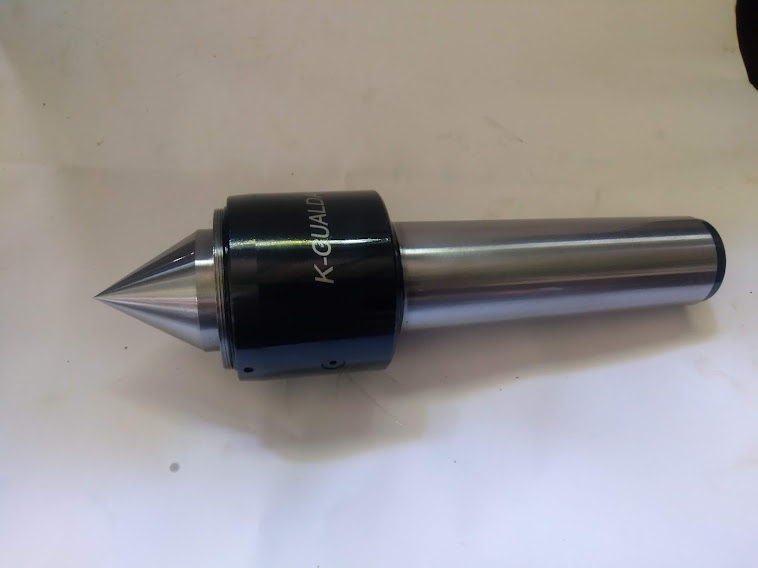

重切削迴轉頂針heavy duty live Ｃenter

外徑斜度（ Mo「se Taper）採用 DIN806 ,心軸以高碳高鉻合金鋼(SUJ2)硬度ＨＲＣ60度精密0.0005。
2.本體及頂心經過精密研磨處理。
3.適用於車床。
載重2.5噸
ＭＴシャンク部規格： DIN806。精密0.0005。材質：JIS SUJ2、硬さ：ＨＲＣ60度
made form Taiwan(R.O.C) k-gualda.machine.co.LTD
Center shaft is made of SUJ2(JIS) and hardened through vacuum heat treatment to provide higher HRC ±60°
Morse Tape「 compIies with DIN806 standard.
Center is fitted with dual ball bearing,thrust bearing and needle roller bearing assembly.
Bearing is from Japan BAND

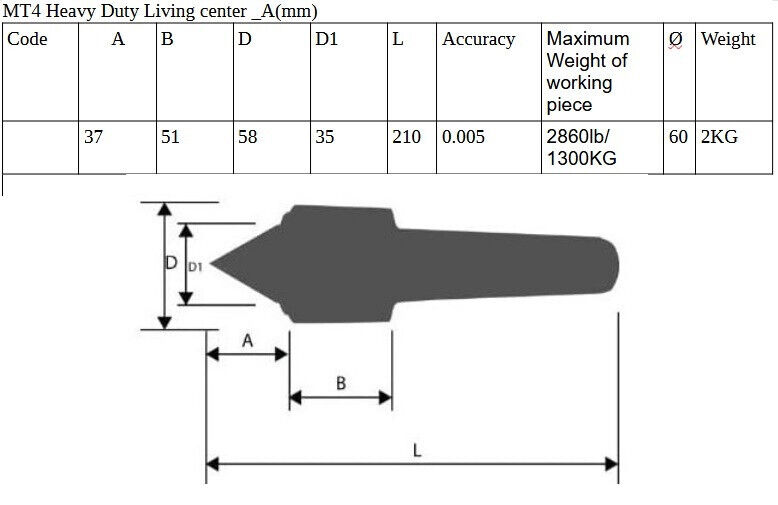

MT4 Maximum Weight of working piece :2860lb/
1300KG

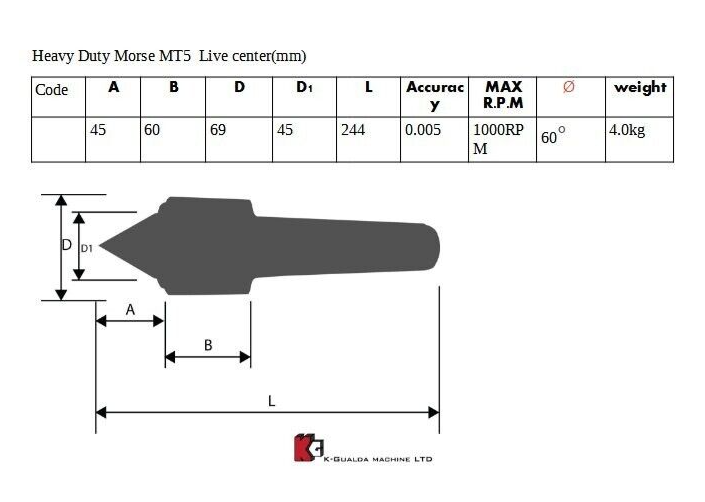

MT5 Maximum Weight of working piece : 4400lb/
2000KG
MT6 Maximum Weight of working piece :8800lb/
3990KG

轉速回転スピード	50RPM	150RPM	400RPM	1000RPM
迴轉頂針負重ワーク最大重量	2000	1300	920	500
