- 外徑斜度（ Mo「se Taper）採用 DIN806 MT規格,心軸以高碳高鉻合金鋼(SKD11)硬度ＨＲＣ60度精密0.0005。
2.本體及頂心經過精密研磨處理。
3.適用於車床。 - 載重2.5噸
- ＭＴシャンク部規格： DIN806 MT。 精密0.0005。材質：JIS SKD11、硬さ：ＨＲＣ60度
- made form (、JIS SKD11) with HRC 60° heat treatment.
.Body and Center is unde「 precise grinding process.
Suitable for lathe and grinder. woodworking and Metalworking.
Morse Tape「 compIies with DIN806 standard.

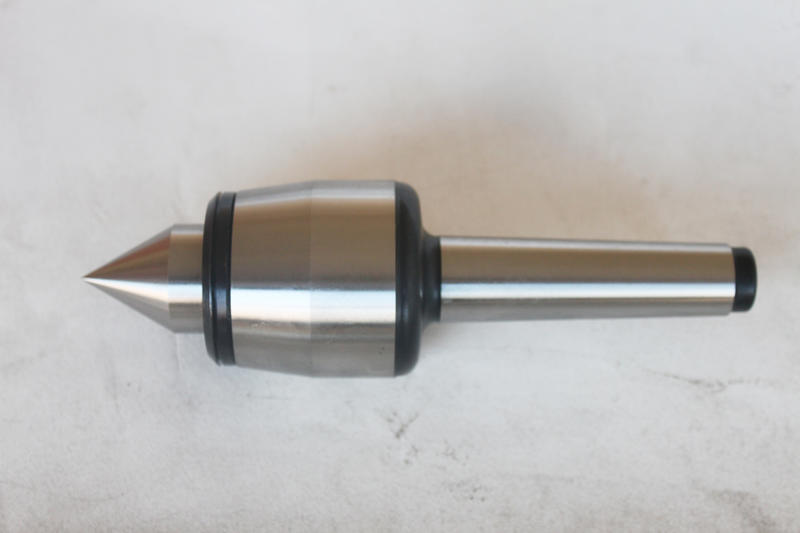

Living center A type
| MT | #5_A Type | #4_A Type | #3_A Type |
| A | 50 | 42 | 38 |
| B | 75 | 62 | 58 |
| D | 84 | 64 | 54 |
| D1 | 40 | 32 | 30 |
| L | 268 | 215 | 180 |
| Accuracy | 0.005 | 0.005 | 0.005 |
| Max R.P.M | 3000RPM | 3800RPM | 5000RPM |
| Ø | 60 | 60 | 60 |
| Weight of working piece | 2000KG | 1300KG | 920KG |
| MT | #4_B Type | #3_B Type | |
| A | 56 | 45 | |
| B | 62 | 58 | |
| D | 64 | 54 | |
| D1 | 32 | 30 | |
| L | 229 | 190 | |
| Accuracy | 0.005 | 0.005 | |
| Max R.P.M | 3800RPM | 5000RPM | |
| Ø | 60 | 60 | |
| Weight of working piece | 500KG | 400KG |

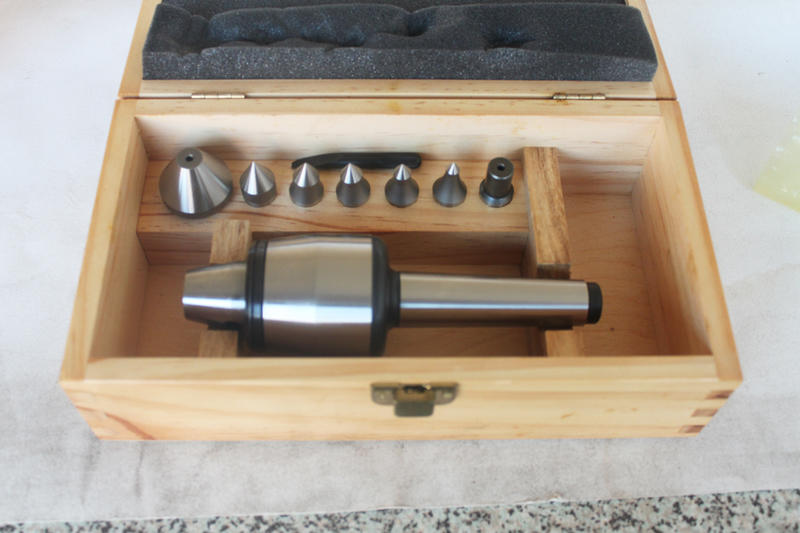

| M | #5_nsert change typepe | #4_nsert change typepe | #3_nsert change typepe |
| A | 50 | 32 | 27 |
| B | 72 | 62 | 58 |
| D | 84 | 64 | 54 |
| D1 | 40 | 32 | 30 |
| L | 250 | 230 | 175 |
| Accuracy | 0.01 | 0.01 | 0.01 |
| Max R.P.M | 3000RPM | 3700RPM | 5000RPM |
| Ø | 60 | 60 | 60 |
| Weight of working piece | 650KG | 250KG |
金東立機械有限公司 k-gualda machine co., LTD
